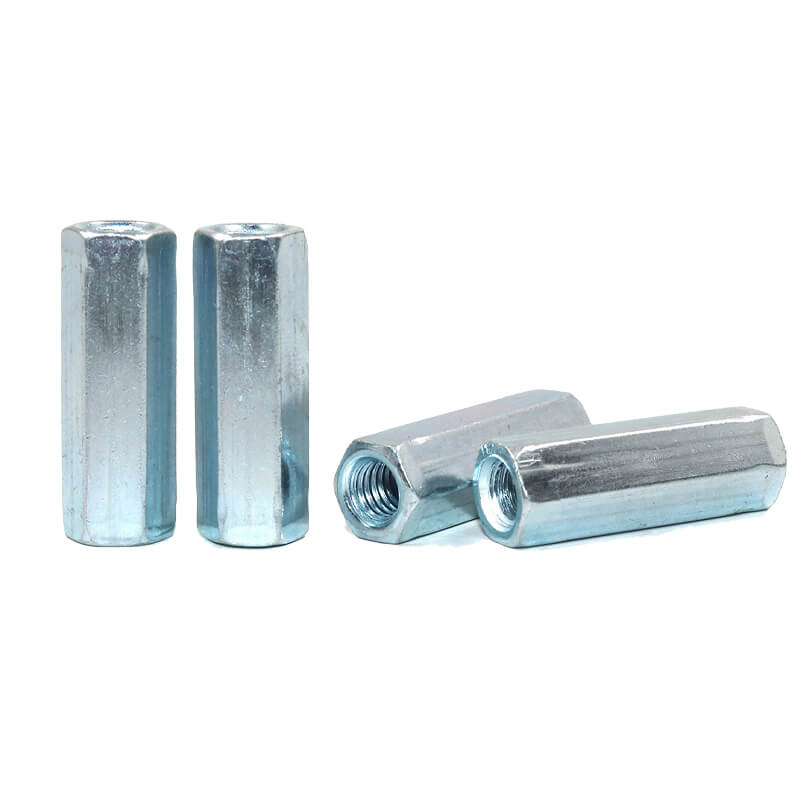

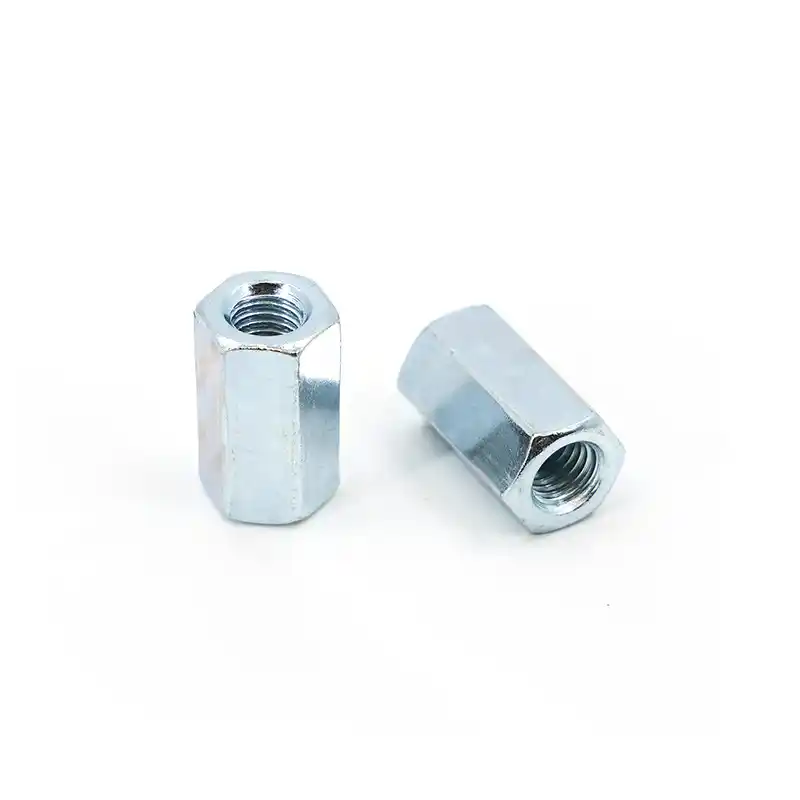

The Zinc Plated Hex Coupling Nut (commonly known as an extension nut, long hex connector nut, threaded rod coupler, or DIN 6334 fastener) is an elongated internally threaded fastener designed specifically to join two male threaded components together end-to-end, such as threaded rods, stud bolts, or hanger bolts. Engineered with a height approximately three times its nominal diameter (L ≈ 3d), the extended thread length maximizes thread engagement to distribute tensile load evenly along the joint assembly. Manufactured in Class 4 low-carbon steel with a protective electro-zinc coating, our coupling nuts conform strictly to global ISO standards.
Technical Specifications of Zinc Plated Hex Coupling Nuts
We manufacture Class 4 zinc-plated hex coupling nuts using low-carbon steel (Q195, Q235B) to provide optimal ductility and reliable tensile strength for building suspensions, pipe hanging systems, and strut channel framing. The electro-deposited blue-white trivalent zinc layer (Cr3+) offers clean silver aesthetics and corrosion resistance for indoor and sheltered outdoor environments.
| Parameter | Class 4 Zinc Plated Coupling Nut | Class 8 High Tensile Coupling Nut |
|---|---|---|
| Core Material Grade | Low Carbon Steel (Q195 / Q235B) | Medium Carbon Steel (45#) |
| Proof Load Stress (Min) | 400 N/mm² (400 MPa) | 800 N/mm² (800 MPa) |
| Standard Height (L) | 3 × Nominal Diameter (DIN 6334) | 3 × Nominal Diameter (DIN 6334) |
| Zinc Plating Protection | 5 µm – 12 µm Electro-Zinc Plated (Cr3+) | 5 µm – 15 µm Electro-Zinc / Hot-Dip Galvanized |
| Mating Component Compatibility | Class 4.6 / 4.8 Threaded Rods & Studs | Class 8.8 High Tensile Threaded Rods |
Precision Manufacturing and Long-Thread Tapping Process
At our manufacturing facility in Handan, China, hex coupling nuts undergo specialized long-body multi-station cold heading, high-depth internal tapping, barrel deburring, and automated electroplating:
- Long-Body Cold Heading: High-tonnage automatic cold formers press low-carbon steel wire rod into deep hexagonal body profiles with high dimensional concentricity.
- Deep Through-Thread Tapping: Precision long-reach tapping spindles cut metric 6H internal threads continuously through the entire body height, eliminating thread binding at center connection points.
- Centric Chamfering & Deburring: Both ends undergo chamfer machining to establish clean thread entry angles that allow smooth hand-threading of full-thread bars.
- Electro-Zinc Galvanizing & Passivation: Degreasing and acid pickling clean scale, followed by galvanic zinc deposition and Cr3+ blue-white passivation for bright, durable corrosion protection.
Industrial Applications of Hex Coupling Nuts
Hex coupling nuts serve as the essential rod-extending element in construction, MEP (mechanical, electrical, and plumbing) installations, and industrial framing:
- Threaded Rod Ceiling Extensions: Joining continuous length 1-meter or 3-meter threaded bars suspended from concrete ceilings to support HVAC ductwork, fire sprinkler lines, and cable trays.
- Strut Channel Framing Systems: Connecting threaded studs to strut channel spring nuts and bracket bases in modular pipe support networks.
- Anchor Stud Extensions & Concrete Formwork: Lengthening cast-in-place concrete foundation anchor studs to reach top plate connections.
Quality Assurance and Export Packaging for Hex Coupling Nuts
Handan YiHao Fastener enforces strict Quality Assurance (QA) standards for all overseas export orders. Testing procedures include 100% full-length thread plug gauge go/no-go checks, body height and across-flats dimensional verification, proof stress load testing, and salt spray validation.
All export items are bulk packed in heavy-duty 25kg inner cartons, neatly stacked on ISPM 15 compliant fumigated wooden pallets, and wrapped in protective stretch film for safe ocean transportation.
Request Factory Direct Pricing for Zinc Plated Hex Coupling Nuts
Looking for a trusted manufacturer in Handan, China for Class 4 zinc-plated hex coupling nuts / metric thread connectors (DIN 6334 / ASME B18.2.2)? Contact Handan YiHao Fastener today for technical datasheets, matching full-thread rods, free samples, and direct bulk export quotes.
