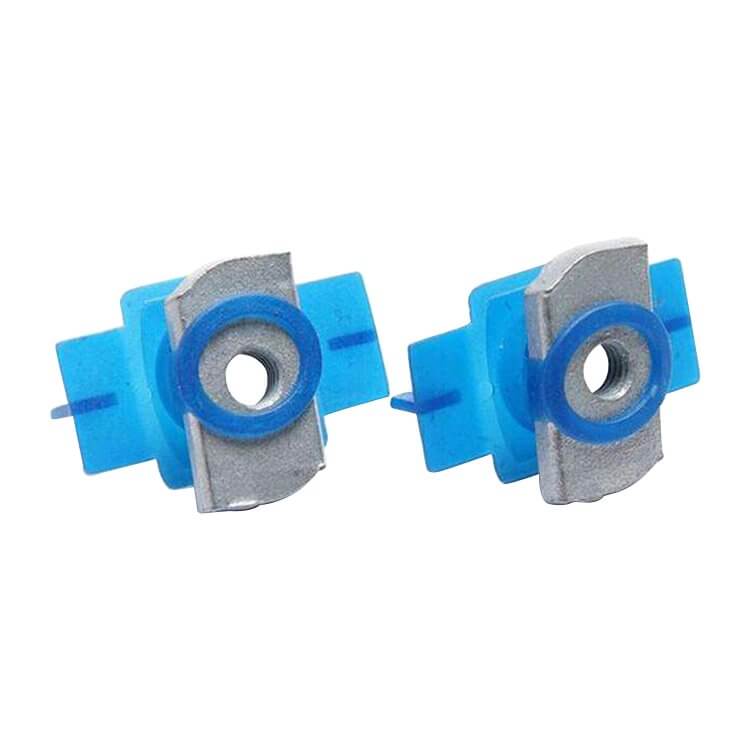

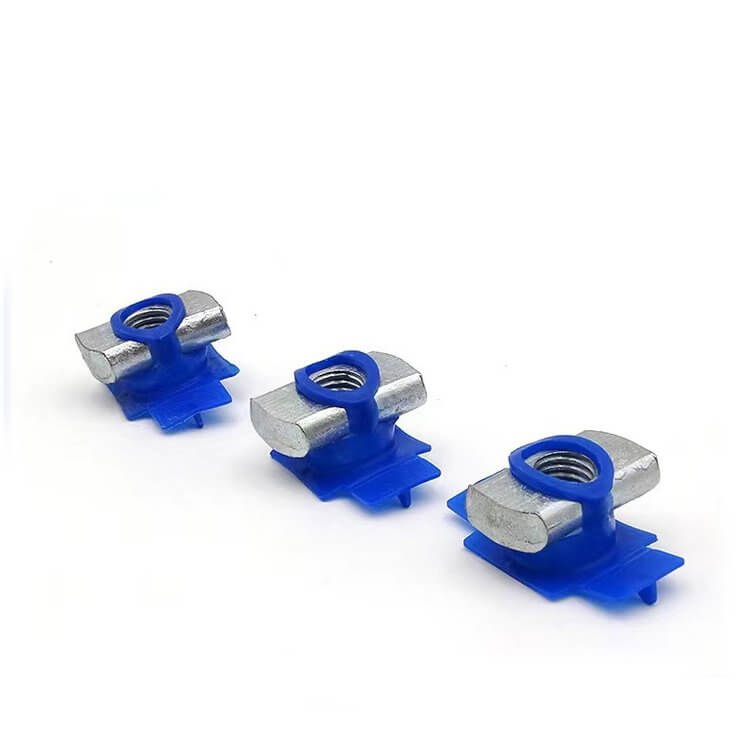

The Plastic Wing Channel Nut (also known as a strut channel nut with plastic wings, plastic wing spring nut, seismic bracing channel nut, or C-channel retainer nut) is a modernized framing fastener specifically designed for rapid installation into 41mm strut channel systems (Unistrut profile). Comprising a heavy-duty carbon steel rectangular nut block encased in a resilient plastic wing sleeve, the flexible side tabs push against the internal lips of the C-channel. This spring-like friction holds the nut securely in place at any vertical or overhead position before tightening, eliminating nut sliding and speeding up installation times in accordance with global ISO standards.
Technical Specifications of Plastic Wing Channel Nuts
We manufacture Class 4 low-carbon steel plastic wing channel nuts in both Electro-Zinc Plated (EG) and Hot-Dip Galvanized (HDG) surface finishes. The steel nut face features precision-machined serrated grooves that bite into the strut channel’s inward-curved lips when torqued, providing high slip resistance under heavy shear and tensile loads.
| Parameter | Electro-Zinc Plated Plastic Wing Nut | Hot-Dip Galvanized Plastic Wing Nut |
|---|---|---|
| Steel Nut Material Grade | Low Carbon Steel (Q195 / Q235B) Class 4 | Low Carbon Steel (Q235B) Class 4 |
| Wing Sleeve Material | High-Toughness Polyamide (Blue / Custom Color) | High-Toughness Polyamide (Blue / Custom Color) |
| Surface Protection Layer | 5 µm – 12 µm Electro-Zinc Plated (Cr3+) | 45 µm – 65 µm Hot-Dip Galvanized (HDG) |
| Channel Profile Compatibility | 41×21mm, 41×41mm, 41×62mm Strut Channels | 41×21mm, 41×41mm, 41×62mm Strut Channels |
| Anti-Slip Mechanism | Serrated Grooves on Steel Nut Face | Serrated Grooves on Steel Nut Face |
Precision Manufacturing and Plastic Wing Assembly Process
At our manufacturing plant in Handan, China, plastic wing channel nuts are forged, serrated, plated, and over-molded/assembled on automated production lines:
- Multi-Station Cold Heading: Carbon steel wire rod is forged into exact rectangular channel nut blocks with chamfered ends that allow easy 90-degree insertion into the channel slot.
- Serrated Tooth Pressing & Tapping: Deep locking teeth are pressed onto the contact shoulders, followed by automated internal tapping of metric 6H threads.
- Surface Galvanizing Treatment: Electro-zinc plating or hot-dip galvanizing protects the steel body against atmospheric corrosion.
- Automated Plastic Wing Fitting: Injection-molded nylon spring wings are mounted onto the steel nut center, creating a permanent, flexible retaining collar.
Industrial Applications of Plastic Wing Channel Nuts
Plastic wing channel nuts provide self-retaining ease for MEP installations, seismic restraint systems, and modular steel framing:
- Seismic Bracing & Pipe Hanger Support: Securing threaded rods, pipe clamps, and seismic sway braces into vertical or ceiling-mounted strut channels.
- HVAC Ductwork & Electrical Cable Trays: Mounting cable tray brackets, air duct hangers, and electrical conduit clamps onto C-channel networks.
- Solar PV Mounting Structures: Fastening solar panel mounting brackets and strut channel bases in outdoor solar farms.
Quality Assurance and Export Packaging for Plastic Wing Strut Nuts
Handan YiHao Fastener enforces strict Quality Assurance (QA) standards for all overseas export orders. Testing procedures include 100% thread plug gauge go/no-go checks, channel sliding retention tests, slip-load pull tests, and coating thickness verification.
All export items are bulk packed in heavy-duty 25kg inner cartons, neatly stacked on ISPM 15 compliant fumigated wooden pallets, and shrink-wrapped for safe ocean freight.
Request Factory Direct Pricing for Plastic Wing Channel Nuts
Looking for a trusted manufacturer in Handan, China for Class 4 plastic wing channel nuts / strut channel retainer nuts (Zinc Plated / HDG)? Contact Handan YiHao Fastener today for technical datasheets, channel compatibility samples, and direct bulk export quotes.
