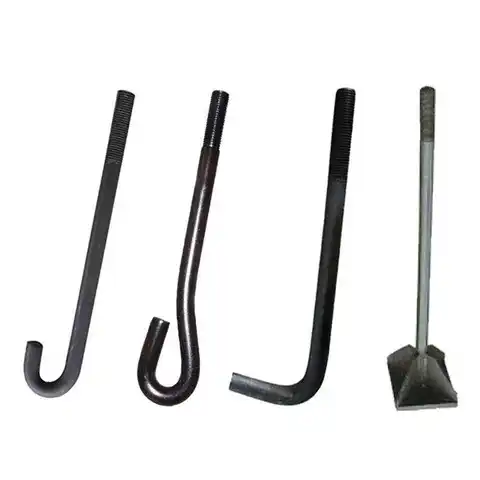

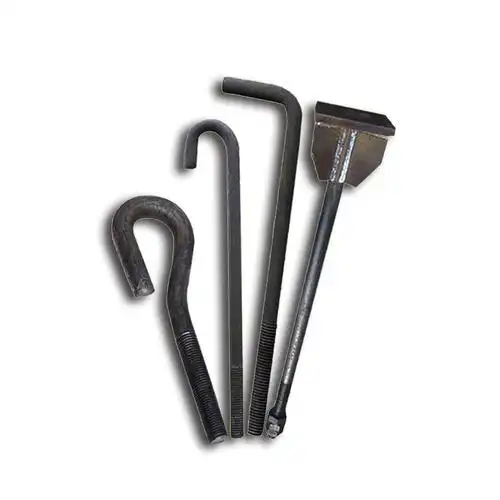

The Concrete Foundation Anchor Bolt (also known as a cast-in-place embedded anchor bolt, foundation stud, L-bolt, J-bolt, or DIN 529 anchor) is a heavy-duty structural fastener designed to be poured directly into concrete foundations to secure steel columns, heavy industrial machinery, bridge piers, and power line towers. Engineered with bent hook ends or heavy welded anchor plates, this fastener provides superior mechanical pull-out resistance, shear capacity, and long-term foundation stability in strict compliance with global ASTM standards.
Technical Specifications of Concrete Foundation Anchor Bolt
We manufacture cast-in-place foundation anchor bolts in various material grades to match civil engineering structural calculations. ASTM F1554 Grade 36 and carbon steel Q235B provide excellent ductility for standard building columns, while Grade 55 and Grade 105 heat-treated alloy steels deliver high yield strength for seismic zones, heavy crane runways, and wind turbine foundation cages.
| Property Grade | Raw Material Equivalent | Yield Strength (Min) | Tensile Strength Range | Structural Application |
|---|---|---|---|---|
| ASTM F1554 Gr. 36 / 4.8 | Low Carbon Steel (Q235B) | 36 ksi (250 MPa) | 58 – 80 ksi (400–550 MPa) | Standard Light Framing, Light Poles & Equipment Bases |
| ASTM F1554 Gr. 55 / 8.8 | High-Strength Steel (Q355B / 45#) | 55 ksi (380 MPa) | 75 – 95 ksi (520–650 MPa) | Industrial Steel Warehouses, Highway Sign Gantries |
| ASTM F1554 Gr. 105 | Quenched & Tempered Alloy (40Cr) | 105 ksi (724 MPa) | 125 – 150 ksi (860–1030 MPa) | Seismic Structural Anchoring, Wind Power & Heavy Cranes |
Hot Bending, Welding, and Threading Process for Foundation Anchor Bolts
At our specialized manufacturing facility in Handan, China, foundation anchor bolts are forged, bent, welded, and threaded according to custom engineering blueprints:
- Hot Bending & Hook Forming: Carbon steel round bars are induction-heated and bent into precise L-shapes (90° bend), J-shapes (hook bend), or 7-shapes without internal stress cracking.
- Heavy Plate Welding: Square anchor plates or pipe sleeves are CO2 gas-shielded welded to the bottom shank, providing maximum mechanical bearing resistance against concrete shear and tension.
- Precision Thread Rolling: Metric (6g) or UNC (2A) threads are cold-rolled onto the top shank to ensure smooth, fatigue-resistant engagement with hex nuts and leveling washers.
- Hot-Dip Galvanizing (HDG): Exposed thread shanks can be hot-dip galvanized (45–85 µm) to protect against atmospheric rust prior to concrete encapsulation.
Heavy Duty Structural Applications of Concrete Foundation Anchor Bolts
Cast-in-place foundation bolts serve as the essential load-transfer link between concrete substructures and steel superstructures:
- Pre-Engineered Steel Buildings (PEB): Anchoring main structural column baseplates to concrete footing slabs.
- Electric Power Infrastructure & Towers: Securing substation gantry columns, high-voltage transmission tower legs, and transformer pads.
- Highway Infrastructure & Heavy Machinery: Fastening bridge expansion bearings, traffic signal poles, highway guardrails, and heavy industrial stamping presses.
Quality Assurance and Export Packaging for Concrete Foundation Anchor Bolts
Handan YiHao Fastener enforces comprehensive Quality Control (QC) standards for all overseas export shipments. Inspection procedures include full-length dimensional checks against CAD drawings, weld seam non-destructive testing (NDT), thread ring gauge pass/fail tests, and tensile load verification.
For maritime transit, long foundation bolts are bundled securely, wrapped in heavy-duty waterproof woven material, and strapped onto ISPM 15 compliant fumigated wooden pallets or custom steel frame crates to prevent bending and thread damage during ocean transport.
Request Factory Direct Pricing for Concrete Foundation Anchor Bolts
Looking for a trusted manufacturer in Handan, China for custom concrete foundation anchor bolts (L-type, J-type, welded plate, ASTM F1554 / DIN 529)? Contact Handan YiHao Fastener today for engineering blueprint reviews, pre-assembled anchor bolt cages, matching heavy hex nuts, and competitive bulk export quotes.
